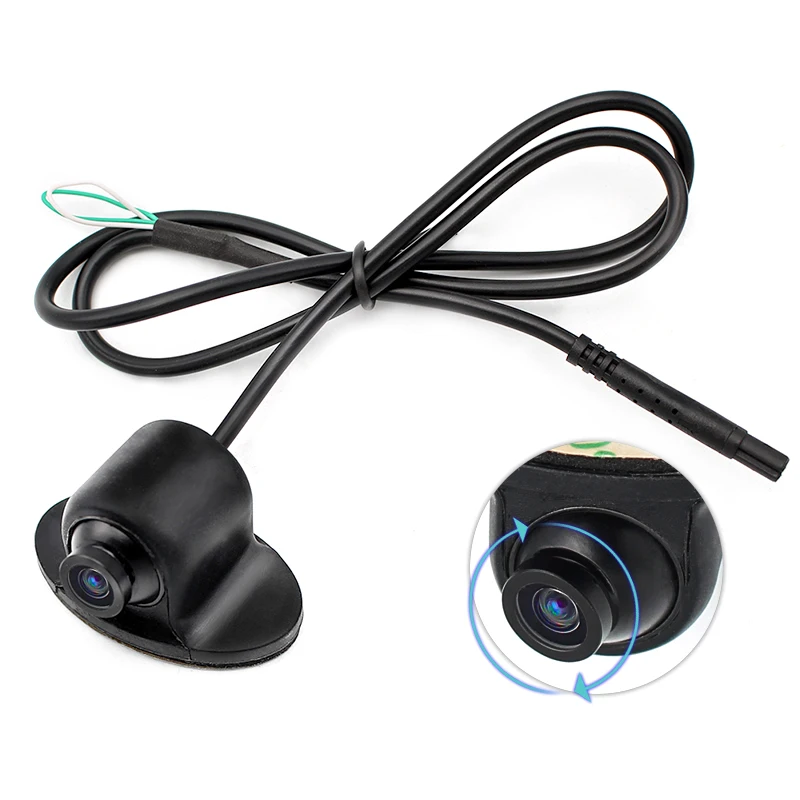

Mini car camera
• Can be used as front or rear-view camera
• Optional distance scale line
• 360° camera rotation
• Waterproof IP67
• Small size and easy installation
• TV system: NTSC
• Horizontal resolution: 480 TV lines
• Effective pixels: 648 x 488
• View angle: 150°
• White balance: Auto
• Power: DC 12 V
• Water-proof: IP67
• Video cable length: 6 meters
• Power supply cable length: 1.5 meters

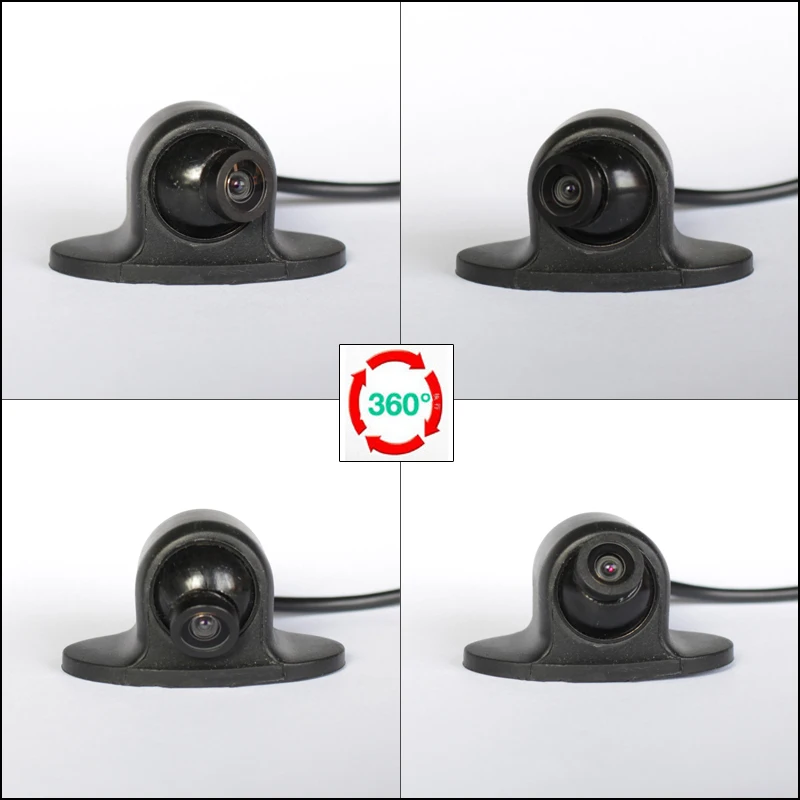

360° camera rotation
Small size and easy installation
Please see the image below for installation instructions.

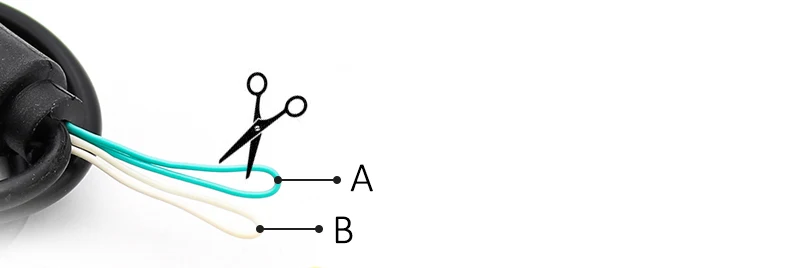

A. White switch wire (mirror/non-mirror switcher)
B. Green switch wire (distance scale line switcher)
• If you need a backup camera with distance scale line, do no cut any wires.
• If you need a backup camera without distance scale line, please cut the green wire.
• If you need a front camera with distance scale line, please cut the white wire.
• If you need a front camera without distance scale line, please cut both the green and white wires.
Reminder: This camera is used as a backup camera with distance scale line as default. if you want to change it to a front-view camera or vice-versa, please switch off electrical power and then connect them again, so it can convert successfully.

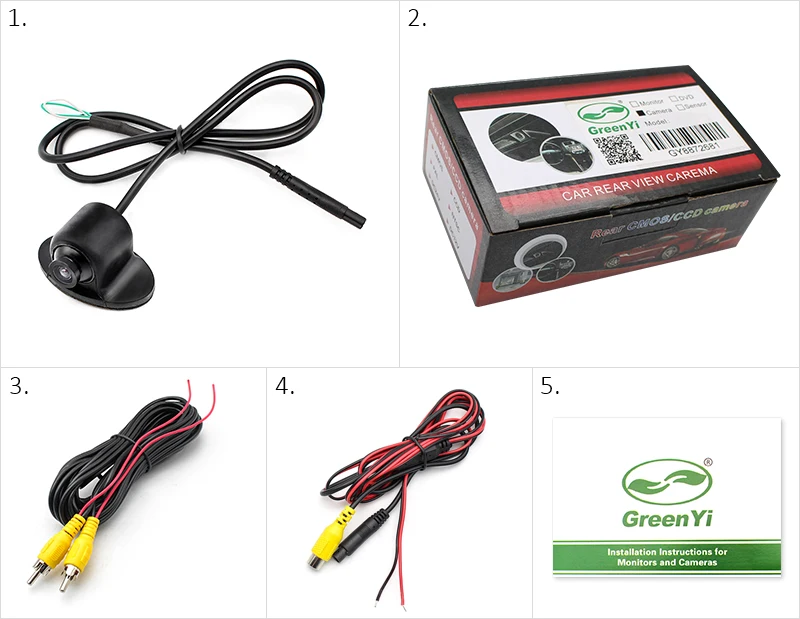

1. Car front/rear-view camera
3. Video cable (6 meters)
4. Power camera
